BBright TS-Playout

The BBright TS-Playout is a high-performance, cost-effective compressed video playout server designed for professional broadcast and streaming applications. Ideal for satellite, terrestrial, cable networks, telco/IPTV operators, and playout facilities, it ensures seamless and efficient content delivery.

BBright TS-Playout

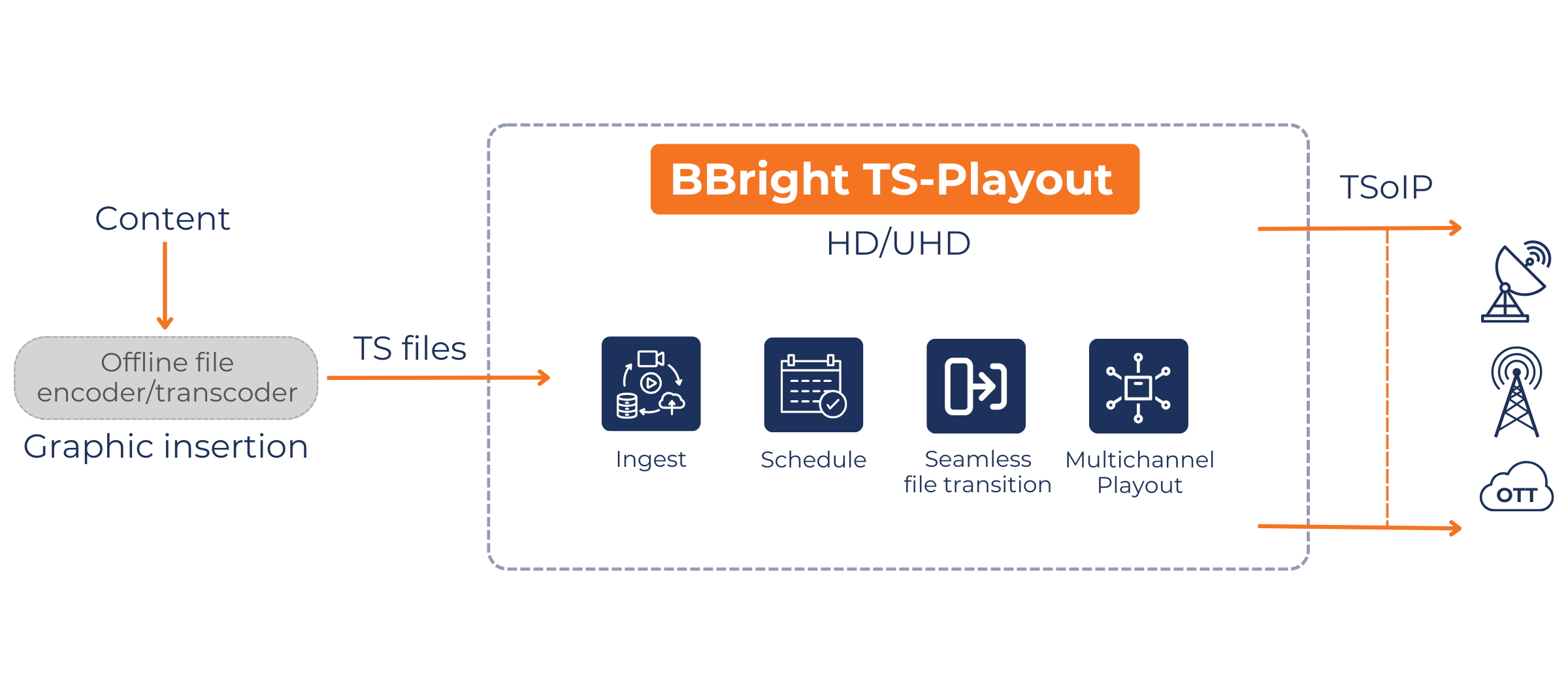

What sets the BBright TS-Playout apart is its unique approach: there is no video or audio re-encoding—only the transport stream layer is regenerated by the BBright engine. TS files are directly ingested into the system, and the built-in automation handles the rest, simplifying operations while ensuring optimal performance.

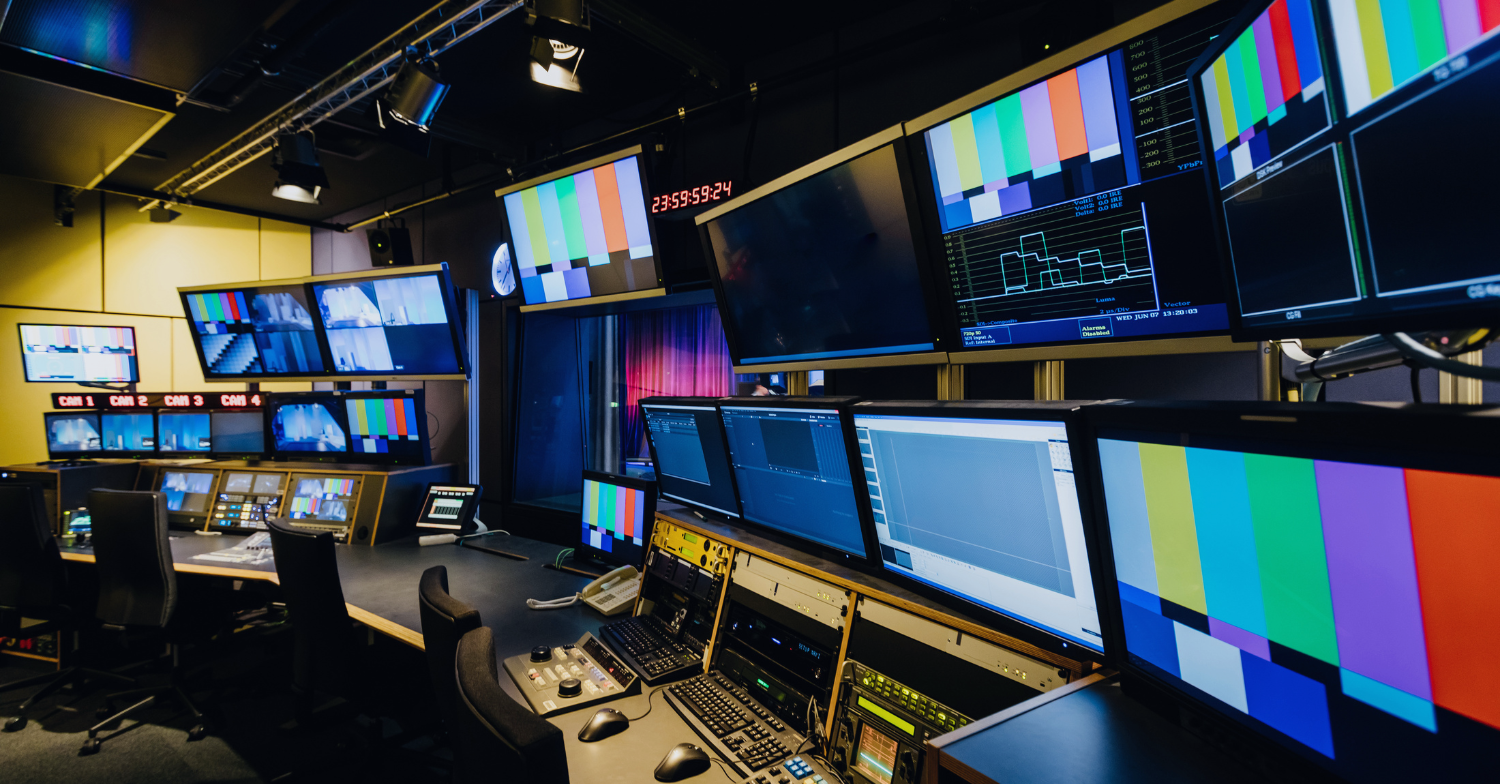

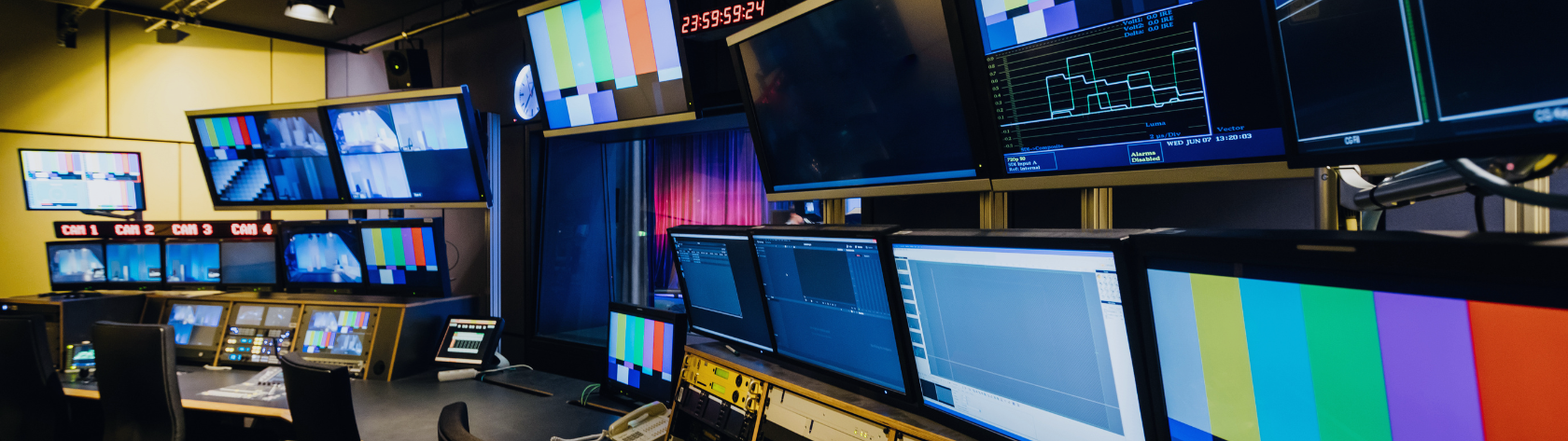

Master Control Room visual

Optimize your operating costs by dispensing with a distribution encoder!

This architecture enables exceptional channel density, supporting up to 20 channels per playout with resolutions up to Ultra HD, while maintaining unparalleled reliability for mission-critical broadcast workflows.

New BBright TS-Playout Datasheet

Download the updated 2025 version of the datasheet for more details:

Download

Specifications

Video

  • Multi-Codec support: HEVC / H264 / MPEG2
  • SD, HD, UHD & 8K
  • Up to 130Mbps per channel
  • HDR: HLG, HDR10, Dolby Vision, SL-HDR1, SLHDR2

Audio

  • AAC, HE-AAC (v1 & v2), AAC-LC / MPEG-1 Layer II / PCM
  • Dolby Digital, Dolby Digital+, Atmos, DolbyAC-4

TS Processing

  • PCR and Continuity Counter processing
  • PTS/DTS Restamping
  • GOP cleaning
  • PID Remapping: 1x Video, 32x Audio, 32x
  • Subtitles
  • Null-packet stuffing for CBR output
  • Raw Mode

Monitoring

  • Video Thumbnails
  • Audio Bargraph for monitoring
  • Bitrate overshoot alarms

Inputs

  • File .ts
  • SPTS and MPTS ingest (FTP / NAS) or USB
  • 3TB of RAID 5 storage

Outputs

  • Multiple SPTS Multicast over IP in UDP or RTP (or MPTS)
  • FEC/SMPTE 2022-1 & 2022-7
  • Stream duplications on secondary Multicast address
  • Max. 500 Mbps combined SPTS outputs

Controls

  • Web UI
  • Rest API
  • 1 + 1 Main and Back-up server’s content redundancy
  • Playout control by text-based, xml, json traffic import

Chassis & connectivity

  • Two IP-bonded GbE ports for GUI control/ingest
  • Two independent GbE ports for TSoIP streaming
  • Redundant power supplies
